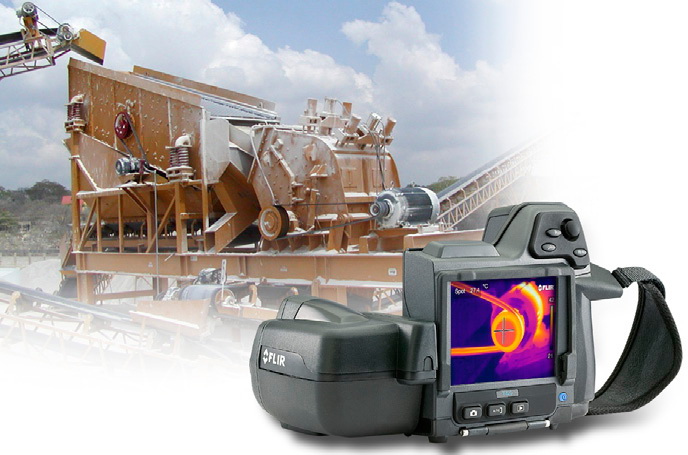

FLIR T440 Thailand Infrared Camera Specifications

High Performance Infrared Camera Wit h on-board Visual Cam era, Thermal Fusion, Touch Screen, Wi-Fi Connect ivity, & Int erchangeable Lens, Plus MSX ™ Image Enhancement & FOV Match

• Superior Thermal Imaging

Sharp thermal resolution at 76,800 pixels for solid accuracy from farther away

• Accurate Temperature Measurements

Accuracy calibrated within +/– 2°C or +/– 2% of reading

• High Temperature Range

measuring up to 2192°F (1200°C) targeting electrical and industrial applications

• Scalable P-i-P and Thermal Fusion

Blend thermal with visible light images on-screen; includes picture-in-picture window sizing

• Multiple Measurements

Add up to 5 box areas and 5 moveable spots using the touchscreen to gather more detailed information

• Annotation

Add voice comments via Bluetooth headset and text notes from the touchscreen keypad; New! T440 has image sketch feature to draw circles and pointers on IR/Visual stored images

• New! Field of View (FOV) Match

Now you have the option to automatically match the visible camera field of view to the IR FOV for better documentation

• New! MSX™ Enhancement

Multi-Spectral Dynamic Imaging

Imaging
Temperature range	- 4°F to 1202°F (-20°C to 650°C)
Zoom	8X Continuous
LCD Image Sketch	Draw on stored images right on touchscreen
Multi-Spectral Dynamic Imaging (MSX)	IR image with enhanced detail presentation
Measurement Presets	Presets for standard measurements
Prole Measurement Analysis	Shows a live graph of temperatures across a line on the image
Common Features
Frame Rate	60Hz
Field of view/Minimum focus distance/FOV Match	25° x 19° / 1.31ft (0.4m) / Field of View Match where Digital Image FOV adapts to the IR lens
Focus	Manual/Automatic
Thermal sensitivity (N.E.T.D)	<0.045°C at 30°C
Detector Type - Focal plane array (FPA) uncooled microbolometer	320 x 240 pixels
Spectral range	7.5 to 13m
Display	Built-in touch-screen 3.5" color LCD
Image modes	Thermal/Visual/Fusion/P-i-P and Thumbnail Gallery
Image Storage	1000 radiometric JPEG images (SD card memory)
Image annotation	Voice (60 sec); text comments, Sketch, image markers on IR
Periodic image storage	7 seconds to 24 hours (IR) and 14 seconds to 24 hours(IR and visual)
Lens	25° (optional 6°, 15°, 45°, 90°, Close up 100, 50m lenses available)
Video Lamp	Bright LED lamp
Laser Classication/Type	Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red)
Set-up controls	Mode selector, color palettes, congure info to be shown in image, local adaptation of units, language, date and time formats, and image gallery
Measurement modes	5 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T
Measurement correction	Reected ambient temperature & emissivity correction
Video Recording in Camera and Video Streaming	Non-radiometric IR-video recording (MPEG-4 to memory card), Radiometric IR-video streaming (Full dynamic to PC using USB or Wi-Fi), and Non-radiometric IR-video streaming (MPEG-4 using Wi-Fi and uncompressed colorized video using USB)
Instant Report	Create a Thermographic Inspection report directly in the camera
Battery Type/operating time	Li-lon/ >4 hours, Display shows battery status
Charging system	In camera AC adapter/2 bay charging system
Shock / Vibration	25G, IEC 60068-2-29 / 2G, IEC 60068-2-6
Dimensions/Weight	4.2x7.9x4.9" (106x201x125mm)/1.94lbs (0.88kg), including battery
