FLIR PathFindIR Technical specifications

IMAGING PERFORMANCE

Detector type Focal Plane Array (FPA), uncooled microbolometer 324 x 256 pixels
Spectral range 8 to 14µm
Field of view 36° (H) x 27° (V) with 19 mm lens
Spatial resolution (IFOV) 2 mrad
Thermal sensitivity 100 mK at +25°C
Image frequency 8.3 Hz PAL or 7.5 Hz NTSC
Focus Automatic (25 m to infinity)
Image processing Digital Detail Enhancement (DDE)

SYSTEM FEATURES

Time to image < 2 seconds
Automatic Heater When window temperature is below +4°C

IMAGE PRESENTATION

Video output RS170 EIA/NTSC or CCIR/PAL composite video, 75Ω
Connector types BNC, with optional pigtail cable

POWER

Requirements 6 - 16 V DC
Consumption 2 W quiescent, 6 W max (with window heater on)

ENVIRONMENTAL SPECIFICATIONS


Operating temperature range -40°C to +80°C
Storage temperature range -57°C to +105°C (Extended storage time above +40°C is not recommended due to reduction in service life)
Humidity 6,500 hours at 81%rh at +25°C and salt spray per IEC 60068-2-11Ka
Sand/dust Mil-Std810
Icing Heater will defrost 2 mm of ice within 15 minutes at -30°C and wind speed of 100 km/h
Encapsulation Hermetically sealed enclosure
Shock 5 30g shocks in 2 directions on 3 axes (30 total) 11 mSec duration per IEC 60068-2-27Ea
Vibration IEC 60068-2-64

PHYSICAL CHARACTERISTICS

Camera Weight 360 grams
Camera Size 57.4 mm x 56.1 mm x 71.4 mm excluding connector which protrudes an additional 28.7 mm

Flir Infrared Camea Thailand

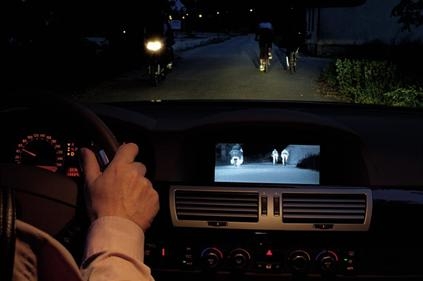

The PathFindIR thermal imager can give you more time to react to road hazards than conventional headlights. It uses the same technology FLIR offers to military agencies to see at night. It features a 36° field-of-view lens, which provides excellent roadside awareness, even at long range. This gives you a better chance of seeing animals and pedestrians approaching the roadway before they become a danger.
