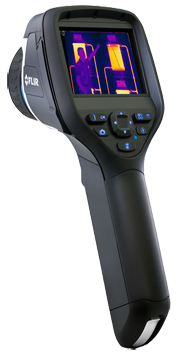

FLIR E30 Thailand Infrared Camera Specifications

Compact Infrared Thermal Imaging Camera 160 x 120 IR Resolution, Measures Temperature to 662°F (350°C)



Imaging and optical data
IR resolution 160 × 120 pixels
Thermal sensitivity/NETD < 0.1°C @ +30°C (+86°F) / 100 mK
Field of view (FOV) / Minimum focus distance 25° × 19° / 0.4 m (1.31 ft.)
Spatial resolution (IFOV) 2.72 mrad
Image frequency 60 Hz
Focus Manual
Focal Plane Array (FPA) / Spectral range Uncooled microbolometer / 7.5–13 μm


Image Presentation
Display Touch screen, 3.5 in. LCD, 320 × 240 pixels
Image modes IR image, thumbnail gallery

Measurement
Object temperature range –20°C to +120°C (–4°F to +248°F)
0°C to +250°C (+32°F to +428°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading

Measurement analysis
Spotmeter 1
Area Box with max./min./average
Automatic hot/cold detection Auto hot or cold spotmeter markers within area
Isotherm Detect high/low temperature/interval
Emissivity correction Variable from 0.01 to 1.0 or selected from materials list
External optics/windows correction Automatic, based on inputs of optics/window transmission
and temperature
Measurement corrections Reflected temperature, optics transmission and atmospheric
transmission

Setup
Color palettes Arctic, Gray, Iron, Lava, Rainbow and Rainbow HC
Set-up commands Local adaptation of units, language, date and time formats
Languages 21

Storage of Image
Image storage Standard JPEG, including measurement data, on memory
card
Image storage mode IR images

Image annotations
Report generation Separate PC software with extensive report generation

Laser pointer
Laser Activated by dedicated button

Data communication interfaces
Interfaces USB-mini, USB-A, composite video
USB - USB-A: Connect external USB device
- USB Mini-B: Data transfer to and from PC
Video out Composite

Power System
Battery Li Ion, 4 hours operating time
Charging system In camera (AC adapter or 12 V from a vehicle) or 2-bay
charger
Charging temperature 0°C to +45°C (+32°F to +113°F)
Power management Automatic shutdown and sleep mode (user selectable)

Environmental data
Operating temperature range –15°C to +50°C (+5°F to +122°F)
Storage temperature range –40°C to +70°C (–40°F to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C
(+77°F to +104°F) / 2 cycles
Encapsulation IP 54 (IEC 60529)
Bump 25 g (IEC 60068-2-29)
Vibration 2 g (IEC 60068-2-6)

Physical data
Camera weight, incl. battery 0.825 kg (1.82 lb.)
Camera size (L × W × H) 246 × 97 × 184 mm (9.7 × 3.8 × 7.2 in.)
Tripod mounting UNC ¼"-20 (adapter needed)

Flir e40 thailand

• High Resolution IR Images - 19,200 pixels (160 x 120) Infrared resolution

• Visible Light Digital Camera - 3MP
resolution with flash provides
sharp images regardless of lighting
conditions

• Bright LED Light - 1Allows the visual
camera and fusion to be used in
poorly lit environments
