FLIR i40 Infrared Camera specifications

Flir i40 Infrared Camera Affordable Infrared for Electrical Troubleshooting

FLIR i40 a lightweight, easy to use Picture in Picture combination of infrared camera and digital camera. The unique FLIR LED lights make it possible to work effectively even in dark environments. Li Ion batteries give 5 work hours without interruption of loading. The easy to use menu system in the camera helps produce and save radiometric JPEG images and visual digital images in a professional way. With FLIR QuickReport™ software you can analyze and create reports of your IR and digital images of findings back in the office.


Imaging and optical data

Field of view (FOV) / Minimum focus distance 25° × 25° / 0.10 m (0.33 ft.)
Spatial resolution (IFOV) 3.64 mrad
Thermal sensitivity/NETD <0.10 ºC (<0.18 ºF) @ +25 ºC (+77 ºF) / 100 mK
Image frequency 9 Hz
Focus Manual
Focal Plane Array (FPA) / Spectral range Uncooled microbolometer / 7.5–13 μm
IR resolution 120 × 120 pixels

Image presentation

Display Built-in 3.5 in. LCD, 256k colors, 240 × 320 pixels
Image modes IR image, visual image, Picture in Picture, thumbnail gallery
Picture in Picture Picture in Picture IR area on visual image

Measurement

Object temperature range –20 to +120 ºC (–4 to +248 °F) 0 to +350 ºC (+32 to +662 °F)
Accuracy ±2 °C (±3.6 °F) or ±2% of reading

Measurement analysis

Spotmeter Center spot
Area 1 box with min./max.
Emissivity correction Variable from 0.1 to 1.0 or selected from list of materials
Reflected apparent temperature correction Automatic, based on input of reflected temperature
IR window Auto-Correction Automatic, based on inputs of optics/ window transmission and temperature

Set-up

Menu commands Palettes (Black and White, Iron and Rainbow), image adjustment (auto/ manual)
Set-up commands Local adaptation of units, language, date and time formats; automatic shutdown, display intensity

Storage of images

Storage of images Standard JPEG, including measurement data, on memory card

Digital camera

Built-in digital camera Standard JPEG, including measurement data, on memory card
Digital camera, focus Minimum focus distance 0.4 m (1.3 ft.)

Laser pointer

Laser Semiconductor AlGaInP diode laser, Class 2

Data communication interfaces

Interfaces USB-mini, USB-A

Power system

Battery Li Ion (field replaceable), 5 hours operating time
Charging system In camera, AC adapter, 2-bay charger or 12 V from a vehicle
Power management Automatic shutdown (user selectable)
AC operation AC adapter, 90–260 VAC, 50/60 Hz, 12 V output to camera

Environmental data

Operating temperature range –15 to +50 °C (+5 to +122 °F)
Storage temperature range –40 to +70 °C (–40 to +158 °F)
Humidity (operating and storage) IEC 68-2-30/24 h 95% relative humidity
+25 °C to +40 °C (+77 °F to +104 °F)
Encapsulation IP 54 (IEC 60529)
Bump 25 g (IEC 60068-2-29)
Vibration 2 g (IEC 60068-2-6)

Physical data

Camera weight, incl. battery 0.60 kg (1.32 lb)
Camera size (L × W × H) 235 × 81 × 175 mm (9.3 × 3.2 × 6.9 in.)

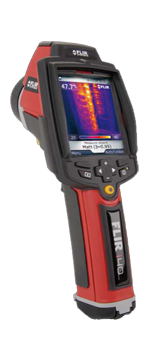

Flir i40

FLIR™ i40 Infrared Camera Affordable Infrared for Electrical Troubleshooting



• Create more compelling reports with fixed PIP Fusion images

• Quickly scan electrical components, pumps, motors, and even building infrastructure.

• Find potential equipment malfunctions to save money and enhance efficiency.


The bright 3.5-inch display makes it easy to see temperature differences and radiation emitted from objects - conditions that signal energy waste, building envelope troubles, even electrical system and component failures!
