FLIR p640 Thailand Infrared Camera Specifications

High resolution thermal and visual image quality,spot size resolution, temperature measurement accuracy, and a host of advanced features make the FLIR P640 a smart choice for IR surveys.


Flir P640 infrared camera/thermal imager sets a new standard for professional thermographers in any industry! Boasting a 640 x 480 detector array and 307,000 pixels, the P640was the first High Definition infrared camera/thermal imager for commercial users.


• Easy to Operate

The FLIR P640 is an affordable easy-to-operate high-performance infrared camera that delivers accurate temperature measurements at productive and safe distances. This makes the Flir P640 camera an ideal solution for cost-effective and efficient predictive maintenance programs.


• High Definition 640 X 480 Detector

Flir P640 infrared camera includes a high-definition 640 X 480 infrared detector that delivers exceptional resolution and image quality for accurate infrared surveys. As a result, accurate readings can be taken on smaller objects at safe distances. Readings can be taken at ±2° C (3.6° F) of reading.


• A Safe Solution

Flir P640 features a large target-distance to spotsize ratio for accurate measurements and analysis. Flir P640 is upgradeable to the P660, so your investment is protected for years to come.


• Safety Enhancing Laser Locator

The laser locator on Flir P640 helps associate the hot spot on the IR image with the exact location of the problem.This feature greatly enhances the user's safety by eliminating the tendency to "finger point" at problems in high voltage and other hazardous environments.


Imaging and optical data

Field of view (FOV) / Minimum focus
distance
24° x 18°/0.3 m
Spatial resolution (IFOV) 0.65 mrad
Thermal sensitivity / NETD 30 mK @ +30°C
Image frequency 30 Hz
Focus Automatic or manual (electric or on the lens)
Zoom 1–8× continuous, digital zoom, including panning
Focal Plane Array (FPA) / Spectral range Uncooled microbolometer / 7.5–13 μm
IR resolution 640 × 480 pixels

Image Presentation

Display Built-in widescreen, 5.6 in. LCD, 1024 × 600 pixels
Viewfinder Built-in, tiltable LCD, 800 × 600 pixels
Automatic image adjustment Continuous / manual; linear or histogram based
Manual image adjustment Level /span / max / min
Image modes IR-image, visual image, thermal fusion, picture in picture, thumbnail
gallery
Thermal fusion IR image shown above, below or within temp interval on visual image
Picture in Picture Resizable and movable IR area on visual image
Reference image Shown together with live IR image

Measurement

Temperature ranges –40°C to +500°C
Accuracy (% of reading) ± 2 °C or ± 2% of reading

Measurement analysis

Spotmeter 10
Area 5 boxes or circles with max. / min. / average
Automatic hot / cold detection detection Max / Min temp. value and position shown within box, circle or on a line
Isotherm 2 with above / below / interval
Profile 1 live line (horizontal or vertical)
Difference temperature Delta temperature between measurement functions or reference
temperature
Reference temperature Manually set or captured from any measurement function
Emissivity correction Variable from 0.01 to 1.0 or selected from editable materials list
Measurement corrections Reflected temperature, optics transmission, atmospheric transmission
and external optics
Measurement function alarm Audible/visual alarms (above / below) on any selected measurement
function

Set-up

Set-up commands Configurable measurement tools menu; configure information to
be shown in image; 2 Programmable buttons; user profiles; local
adaptation of units, language, date and time formats

Storage of images

Image storage Standard JPEG, including measurement data, on memory card
Built-in RAM for burst recording
Image storage mode IR / visual images; simultaneous storage of IR and visual images
Visual image is automatically associated with corresponding IR image
Periodic image storage Every 10 seconds up to 24 hours
Panorama For creating panorama images in FLIR Reporter Building software

Image annotations

Voice 60 seconds stored with the image
Text Predefined text or free text from PDA (via IrDA) stored with the image
Image marker 4 on IR or visual image

Video recording and streaming

Radiometric IR-video recording Real-time to built-in RAM, transferable to memory card.
Non-radiometric IR-video recording MPEG-4 to memory card
Non-radiometric IR-video streaming MPEG-4 to PC using USB or WLAN (optional)

Digital camera

Built-in digital camera 3.2 Mpixel, auto focus, and video lamp

Laser pointer

Laser Activated by dedicated button

Data communication interfaces

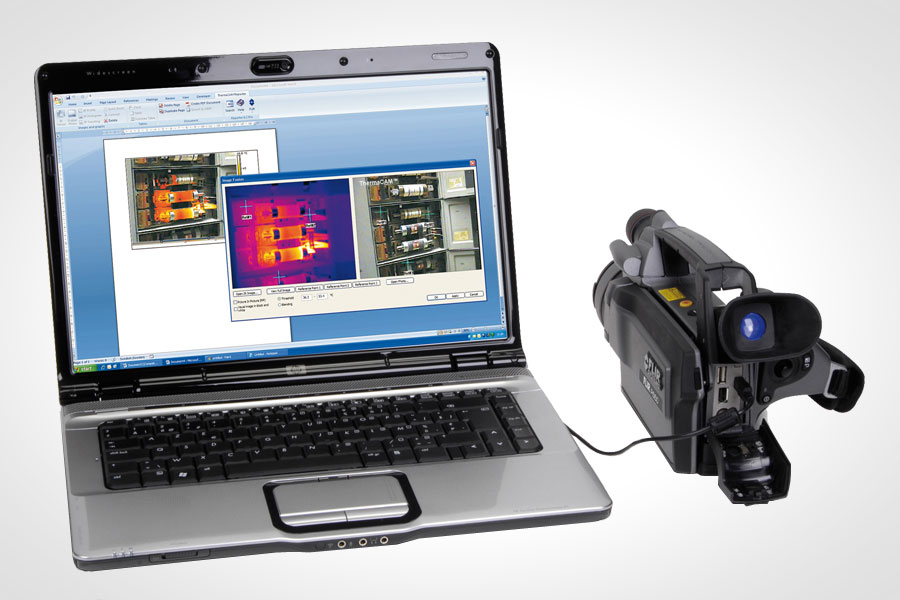

Interfaces USB-mini, USB-A, IrDA, composite video, headset connection

Power system

Battery Li Ion, 3 hours operating time
Charging system In camera (AC adapter or 12 V from a vehicle) or 2-bay charger
Power management Automatic shutdown and sleep mode (user selectable)

Environmental data

Operating temperature range –15°C to +50°C
Storage temperature range –40°C to +70°C
Humidity (operating and storage) IEC 68-2-30/24 h 95% relative humidity +25°C to +40°C
Encapsulation IP 54 (IEC 60529)
Bump 25 g (IEC 60068-2-29)
Vibration 2 g (IEC 60068-2-6)

Physical data

Camera weight, incl. lens and battery 1.8 kg
Cameras size, incl. lens (L × W × H) 324 × 144 × 147 mm
Tripod mounting UNC ¼"-20

FLIR p640 Thailand

FLIR P640 is the highest performing infrared inspection system available. With its state of the art technology, including 640x480 detector resolution and unique ergonomic design it is the natural choice for professional thermographers that want the most efficient instrument producing professional results.


• 6Image resolution 640x480

• Sensitivity 30 mK

• Large high resolution 5.6" flip-out
LCD

• Tiltable high resolution viewfinder

• High performance lenses with
USM technology

• Rotatable handle for convenient
operation

• Built-in 3.2 Mpixel digital camera
with target illuminator

• Panorama

• Standard temperature range
-40 °C to 500 °C
