FLIR p660 Thailand Infrared Camera Specifications

The High Performance infrared inspection system

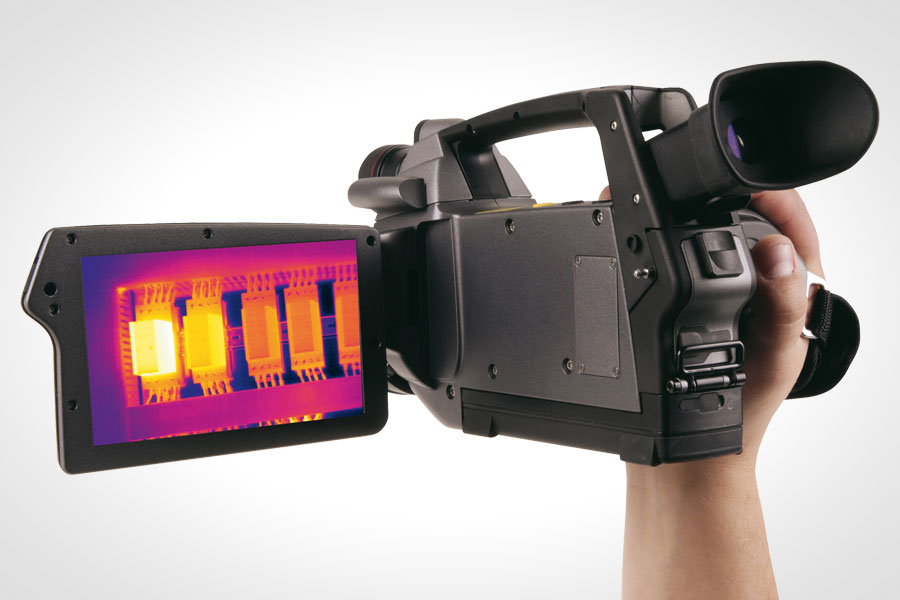

FLIR P660 is the highest performing infrared inspection system available. With its state of the art technology, including 640x480 detector resolution and unique ergonomic design it is the natural choice for professional thermographers that want the most efficient instrument producing professional results.


FLIR Systems FLIR P660 is an affordable easy-to-operate highperformance infrared camera that delivers accurate temperature measurements at productive and safe distances. This makes the P660 camera an ideal solution for cost-effective and efficient predictive maintenance programs.

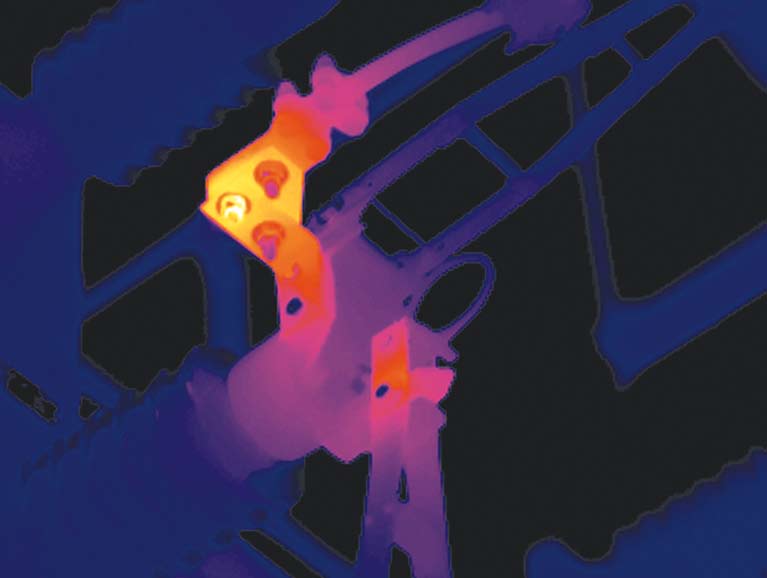

The P660 includes an integrated 3.2 megapixel camera to aid in reporting. Infrared and visual images taken with the P660 can be stored in standard JPEG formats.The P660 visual camera includes matching Field Of View lenses, so IR and visual images are shown at similar long distances using the same Field Of View.


Imaging and optical data

Field of view (FOV) / Minimum focus
distance
12° × 9° / 1.2 m
Spatial resolution (IFOV) 0.33mrad
Thermal sensitivity / NETD 30 mK @ +30°C
Image frequency 30 Hz
Focus Automatic or manual (electric or on the lens)
Zoom 1–8× continuous, digital zoom, including panning
Focal Plane Array (FPA) / Spectral range Uncooled microbolometer / 7.5–13 μm
IR resolution 640 × 480 pixels

Image Presentation

Display Built-in widescreen, 5.6 in. LCD, 1024 × 600 pixels
Viewfinder Built-in, tiltable LCD, 800 × 600 pixels
Automatic image adjustment Continuous / manual; linear or histogram based
Manual image adjustment Level /span / max / min
Image modes IR-image, visual image, thermal fusion, picture in picture, thumbnail gallery
Thermal fusion IR image shown above, below or within temp interval on visual image
Picture in Picture Resizable and movable IR area on visual image
Reference image Shown together with live IR image

Measurement

Temperature ranges –40°C to +500°C
Accuracy (% of reading) ± 2 °C or ± 2% of reading

Measurement analysis

Spotmeter 10
Area 5 boxes or circles with max. / min. / average
Automatic hot / cold detection detection Max / Min temp. value and position shown within box, circle or on a line
Isotherm 2 with above / below / interval
Profile 1 live line (horizontal or vertical)
Difference temperature Delta temperature between measurement functions or reference
temperature
Reference temperature Manually set or captured from any measurement function
Emissivity correction Variable from 0.01 to 1.0 or selected from editable materials list
Measurement corrections Reflected temperature, optics transmission, atmospheric transmission
and external optics
Measurement function alarm Audible/visual alarms (above / below) on any selected measurement
function

Set-up

Set-up commands Configurable measurement tools menu; configure information to
be shown in image; 2 Programmable buttons; user profiles; local
adaptation of units, language, date and time formats

Storage of images

Image storage Standard JPEG, including measurement data, on memory card
Built-in RAM for burst recording
Image storage mode IR / visual images; simultaneous storage of IR and visual images
Visual image is automatically associated with corresponding IR image
Periodic image storage Every 10 seconds up to 24 hours
Panorama For creating panorama images in FLIR Reporter Building software

Image annotations

Voice 60 seconds stored with the image
Text Predefined text or free text from PDA (via IrDA) stored with the image
Image marker 4 on IR or visual image

Video recording and streaming

Radiometric IR-video recording Real-time to built-in RAM, transferable to memory card.
Non-radiometric IR-video recording MPEG-4 to memory card
Non-radiometric IR-video streaming MPEG-4 to PC using USB or WLAN (optional)

Digital camera

Built-in digital camera 3.2 Mpixel, auto focus, and video lamp

Laser pointer

Laser Activated by dedicated button

Data communication interfaces

Interfaces USB-mini, USB-A, IrDA, composite video, headset connection

Power system

Battery Li Ion, 3 hours operating time
Charging system In camera (AC adapter or 12 V from a vehicle) or 2-bay charger
Power management Automatic shutdown and sleep mode (user selectable)

Environmental data

Operating temperature range –15°C to +50°C
Storage temperature range –40°C to +70°C
Humidity (operating and storage) IEC 68-2-30/24 h 95% relative humidity +25°C to +40°C
Encapsulation IP 54 (IEC 60529)
Bump 25 g (IEC 60068-2-29)
Vibration 2 g (IEC 60068-2-6)

Physical data

Camera weight, incl. lens and battery 2.18 kg
Cameras size, incl. lens (L × W × H) 324 × 144 × 147 mm
Tripod mounting UNC ¼"-20

FLIR p660 Thailand

FLIR P660 is the highest performing infrared inspection system available. With its state of the art technology, including 640x480 detector resolution and unique ergonomic design it is the natural choice for professional thermographers that want the most efficient instrument producing professional results. There are three standard set available for option:


1. The camera is equipped with standard 24° lens.

2. The camera is equipped with a 12° telephoto lens with 2x higher magnification

3. The camera is equipped with a 45° wide angle lens particularly useful when studying large areas at close distance.
