FLIR p620 Infrared Camera Specifications

With many outstanding features found in higher model P-Series cameras, the P620 offers an excellent value for organizations looking for an advanced infrared camera solution.


• Easy to Operate

The FLIR P620 is an affordable easy-to-operate high-performance infrared camera that delivers accurate temperature measurements at productive and safe distances. This makes the P620 camera an ideal solution for cost-effective and efficient predictive maintenance programs.


• High Definition 640 X 480 Detector

Flir P620 infrared camera includes a high-definition 640 X 480 infrared detector that delivers exceptional resolution and image quality for accurate infrared surveys. As a result, accurate readings can be taken on smaller objects at safe distances. Readings can be taken at ±2° C (3.6° F) of reading.


• A Safe Solution

Flir P620 features a large target-distance to spot size ratio for accurate measurements and analysis. This enables professionals to conduct quick, easy and safe IR inspections where high-voltage and hazardous conditions exist.

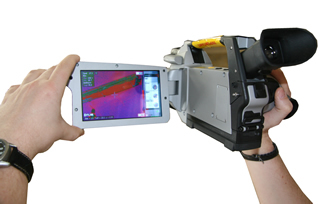

• Viewfinder and LCD

Flir P620 includes a viewfinder and high resolution LCD for added flexibility in field operations. The tilt-able viewfinder is ideal for outdoor work, especially in bright sunlight and viewing targets under all lighting conditions. The 5.6" wide screen LCD is a productive solution for indoor viewing of images.


Imaging and optical data

Field of view (FOV) / Minimum focus
distance
24° x 18°/0.3 m
Spatial resolution (IFOV) 0.65 mrad
Thermal sensitivity / NETD 40 mK at 30° C (86° F)
Image frequency 30 Hz
Focus Automatic or manual (electric or on the lens)
Zoom 1–2× continuous, digital zoom, including panning
Focal Plane Array (FPA) / Spectral range Uncooled microbolometer / 7.5–13 μm
IR resolution 640 × 480 pixels

Image Presentation

Display Built-in widescreen, 5.6 in. LCD, 1024 × 600 pixels
Viewfinder Built-in, tiltable LCD, 800 × 600 pixels
Automatic image adjustment Continuous / manual; linear or histogram based
Manual image adjustment Level /span / max / min

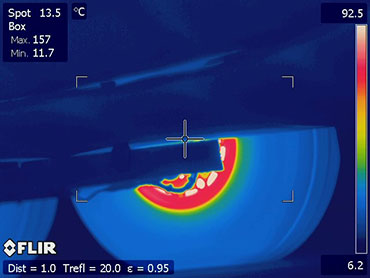

Image modes IR-image, visual image, thermal fusion, picture in picture, thumbnail gallery
Thermal fusion IR image shown above, below or within temp interval on visual image
Picture in Picture Resizable and movable IR area on visual image
Reference image Shown together with live IR image

Measurement

Temperature ranges –40°C to +500°C
Accuracy ± 2 °C or ± 2% of reading

Measurement analysis

Spotmeter 3
Area 3 boxes or circles with max. / min. / average
Automatic hot / cold detection Max / Min temp. value and position shown within box, circle or on a line
Isotherm 2 with above / below / interval
Difference temperature Delta temperature between measurement functions or reference
temperature
Reference temperature Manually set or captured from any measurement function
Emissivity correction Variable from 0.01 to 1.0 or selected from editable materials list
Measurement corrections Reflected temperature, optics transmission, atmospheric transmission
and external optics

Set-up

Set-up commands Configurable measurement tools menu; configure information to
be shown in image; 2 Programmable buttons; user profiles; local
adaptation of units, language, date and time formats

Storage of images

Image storage Standard JPEG, including measurement data, on memory card
Image storage mode IR / visual images; simultaneous storage of IR and visual images
Visual image is automatically associated with corresponding IR image
Periodic image storage Every 10 seconds up to 24 hours
Panorama For creating panorama images in FLIR Reporter Building software

Image annotations

Voice 60 seconds stored with the image
Text Predefined text or free text from PDA (via IrDA) stored with the image
Image marker 4 on IR or visual image

Video recording and streaming

Non-radiometric IR-video streaming MPEG-4 to PC using USB or WLAN (optional)

Digital camera

Built-in digital camera 3.2 Mpixel, auto focus, and video lamp

Laser pointer

Laser Activated by dedicated button

Data communication interfaces

Interfaces USB-mini, USB-A, IrDA, composite video, headset connection

Power system

Battery Li Ion, 3 hours operating time
Charging system In camera (AC adapter or 12 V from a vehicle) or 2-bay charger
Power management Automatic shutdown and sleep mode (user selectable)

Environmental data

Operating temperature range –15°C to +50°C
Storage temperature range –40°C to +70°C
Humidity (operating and storage) IEC 68-2-30/24 h 95% relative humidity +25°C to +40°C
Encapsulation IP 54 (IEC 60529)
Bump 25 g (IEC 60068-2-29)
Vibration 2 g (IEC 60068-2-6)

Physical Data

Camera weight, incl. lens and battery 1.8 kg
Cameras size, incl. lens (L × W × H) 324 × 144 × 147 mm
Tripod mounting UNC ¼"-20

FLIR p620 Thailand

The most affordable high definition infrared camera!


• 640 x 480 High Definition Infrared Detector

• Outstanding Thermal Sensitivity: 0.06° C

• Eyepiece Viewfinder for Outdoor Work

• New TripleFusion Technology

• Handheld Wireless Remote

• Rugged, Ergonomic, Feature Rich

• Most Accurate IR Camera on the Market

• Target Illuminator for Low-light Areas

• Voice Annotation with Each Image
