FLIR HM-Series Thailand Infrared Camera Specifications


HM-Series: use the power of thermal imaging for night-time navigation and to increase shipboard security


>


HM-224

HM-324 XP+

IMAGING PERFORMANCE
Detector type Focal plane array, uncooled Vanadium
Oxide (VOx) Microbolometer:
240 x 180 pixels		 Focal plane array, uncooled Vanadium
Oxide (VOx) Microbolometer:
320 x 240 pixels
Spectral range 7.5 to 13.5 μm 7.5 to 13.5 μm
Field of view 24° (H) x 18°(V) 24° (H) x 18°(V)
Field of view with 2X extender 12° (H) x 9°(V) 12° (H) x 9°(V)
Thermal sensitivity <50 mK at f/1.0 at +25°C <50 mK at f/1.0 at +25°C
Image frequency 8.3 Hz Pal / 7.5 Hz NTSC 8.3 Hz Pal / 7.5 Hz NTSC
Focus HM-224: Fixed
HM-224 with 2X extender lens: Manual		 HM-324 XP+: Fixed
HM-324 XP+ with 2X extender lens: Manual
Digital zoom - 2x
Image processing Digital Detail Enhancement (DDE) Digital Detail Enhancement (DDE)

IMAGE PRESENTATION
Viewfinder LCD screen LCD screen
Video output NTSC or PAL composite video; RCA jack NTSC or PAL composite video; RCA jack
Image polarity White hot / black hot; selectable White hot / black hot; selectable
On-screen symbology Standard Standard

POWER
Requirements 4 AA Batteries; rechargeable NiMH (included) , non- rechargeable Li-Ion or Alkaline 4 AA Batteries; rechargeable NiMH (included) , non- rechargeable Li-Ion or Alkaline
Battery life > 5 hours on NiMH batteries - 120 hours in
stand-by with NiMH batteries		 > 5 hours on NiMH batteries - 120 hours in
stand-by with NiMH batteries

ENVIRONMENTAL SPECIFICATIONS
Operating temperature range 0°C to +50°C -20°C to +60°C
Storage temperature range -20°C to +70°C -40°C to +75°C
Humidity non condensing 5% to 95% 5% to 95%
Encapsulation IP67 IP67
Drop Operational after 1 meter drop onto
concrete		 Operational after 1 meter drop onto
concrete

PHYSICAL CHARACTERISTICS

HM-224 / HM-324 XP+

HM-224 / HM 324 XP+ with extender
Camera weight incl. Lens and batteries 660 grams 970 grams
Camera Size (L x W x H) 240 mm x 85 mm x 60 mm 265 mm x 85 mm x 75 mm
Shipping weight (camera + packaging) 2.8 kg 2.8 kg
Shipping size (camera + packaging) 450 mm x 280 mm x 180 mm 450 mm x 280 mm x 180 mm
Shipping weight (2x extender + packaging) - The 2X extender is being shipped in a separate
box of approx. 1 kg





Flir HM Series Thailand

The HM-Series are handheld shock-resistant thermal imaging cameras. They produce a crisp image in the darkest of nights. The HM-Series will dramatically increase your situational awareness. The HM-Series can be used on board of all types of vessels. Yachts, commercial ships, tug and tow boats, work boats, police and law enforcement boats will all benefit from the power of thermal imaging.


The HM-Series thermal imaging cameras are excellent tools for night-time navigation, securing any shipboard environment, anti-piracy and many other maritime applications. Whether you are anchored in port or sailing in the open sea, you will be able to see in total darkness.

Flir Infrared Camera Thailand

Thermal imaging: is not affected by the light and produces a clear image.

Flir Infrared Camera Thailand

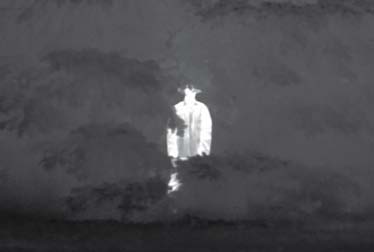

Thermal imaging: person hiding in bushes is clearly visible since thermal contrast is practically impossible to mask.
