FLIR VSR-6 Technical Specifications

Compliments and completes your security camera network by giving you the power to see threats invisible to the naked eye

Thermal Camera Performance
Sensor Type Long-life, uncooled VOx 160x120 Microbolometer
Focal Length 6.3 mm
Field-of-View 52° x 40°
Spectral Range 7.5 to 13.5 μm

System Specifications
Size 8" x 4.25" x 5.3" (203 mm x 108 mm x 135 mm)
Weight 4.7 lb (2.1 kg)
Video Output NTSC or PAL
Power Requirements 14-32VDC or 18-27VAC
Power Consumption 4W nominal, 9W peak at 24VAC

Environmental
Operating Temp -26° to +131°F (-32°C to +55°C)
Standards IP 66 & Mil-Std 810E


Flir Thermography Thailand

The Power Of Thermal Imaging


Flir Thermography Thailand
Flir Thermography Thailand

Thermal security cameras see heat

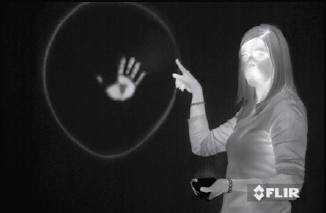

Thermal security cameras make pictures from heat energy that is invisible to the naked eye. Everything in the color image below is giving off heat – even the ice cubes she is holding in her left hand, and the circle she traced on the wall with her right.

Flir Thermography
Flir Thermography

See through obscurants

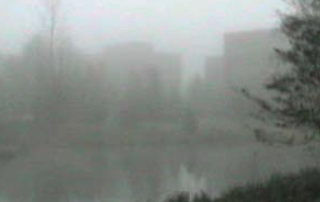

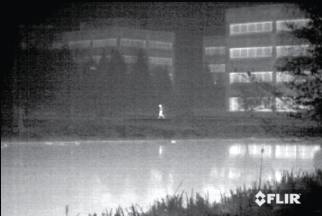

Thermal energy passes through many obscurants including smoke, dust, modest foliage and light fog. The thermal camera can see this person clearly through the fog, but the standard visible-light color camera cannot.
